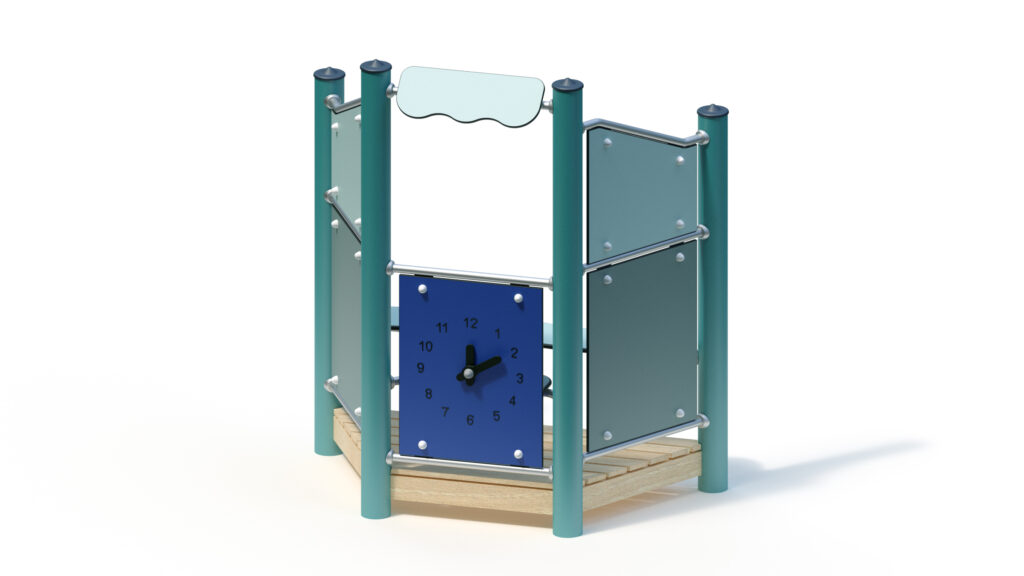

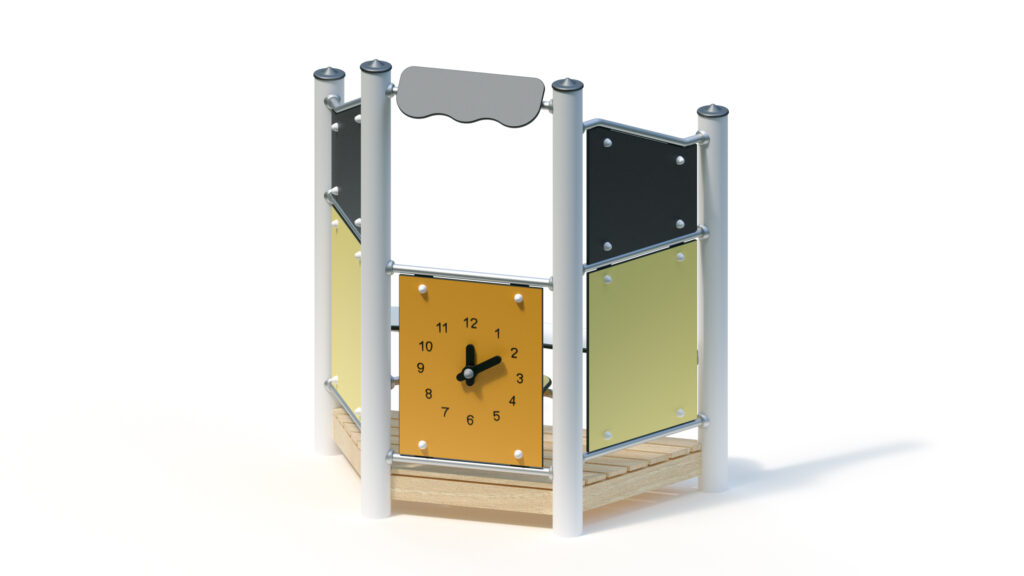

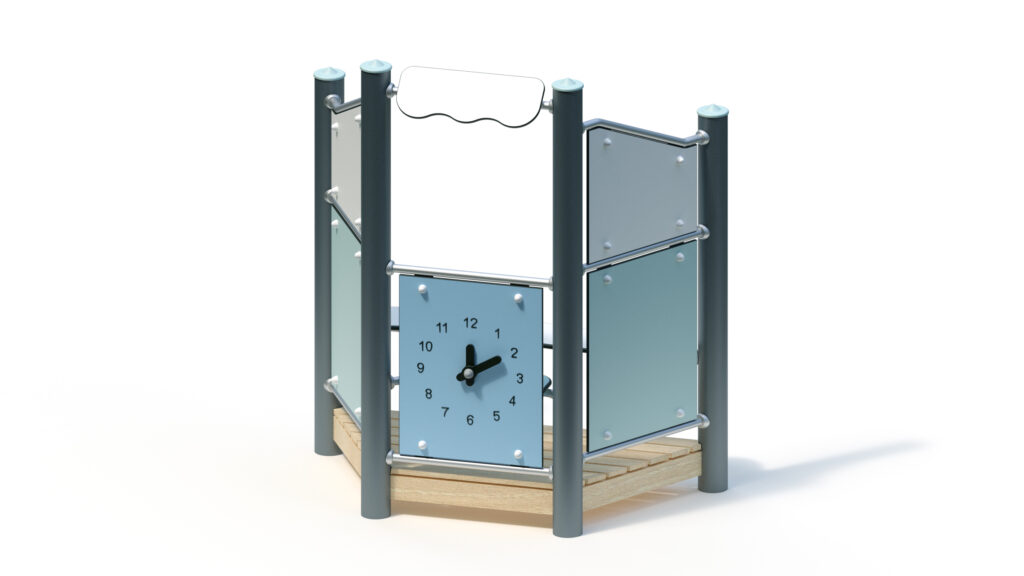

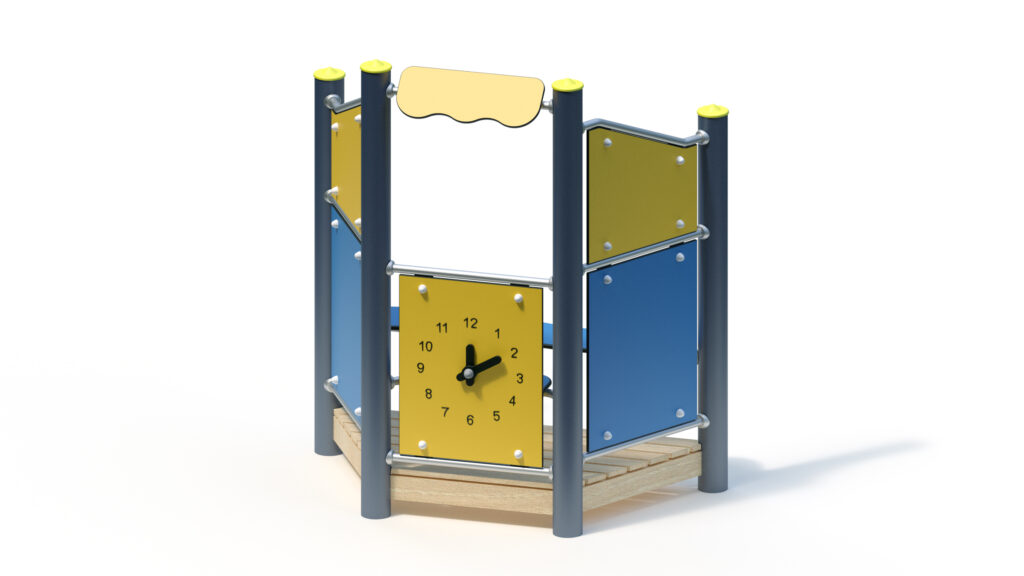

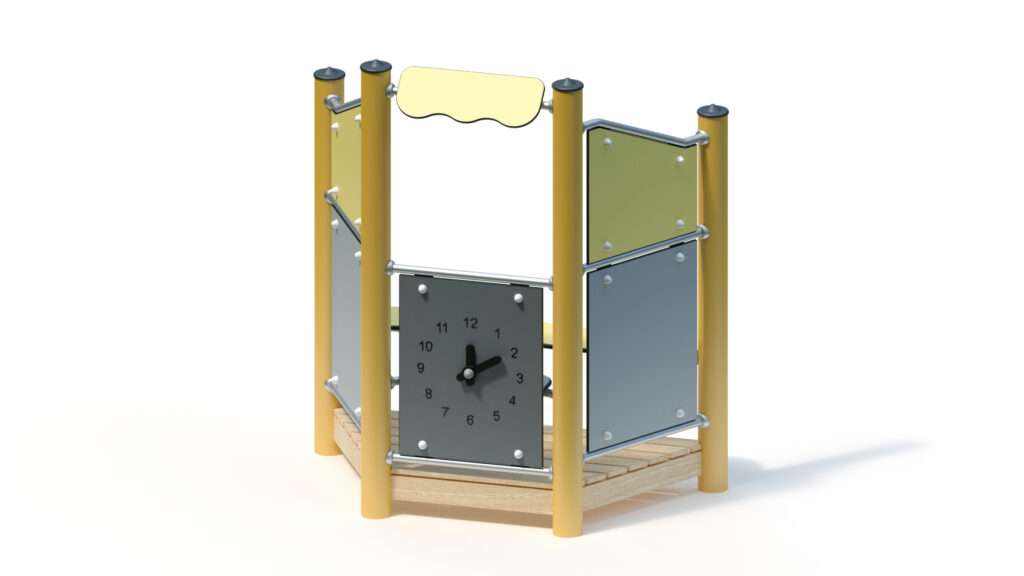

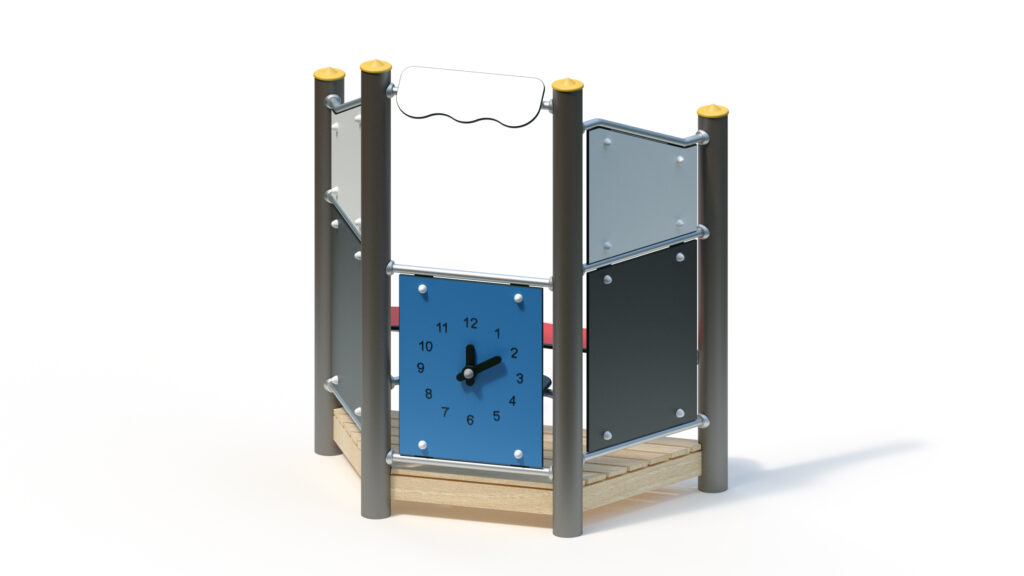

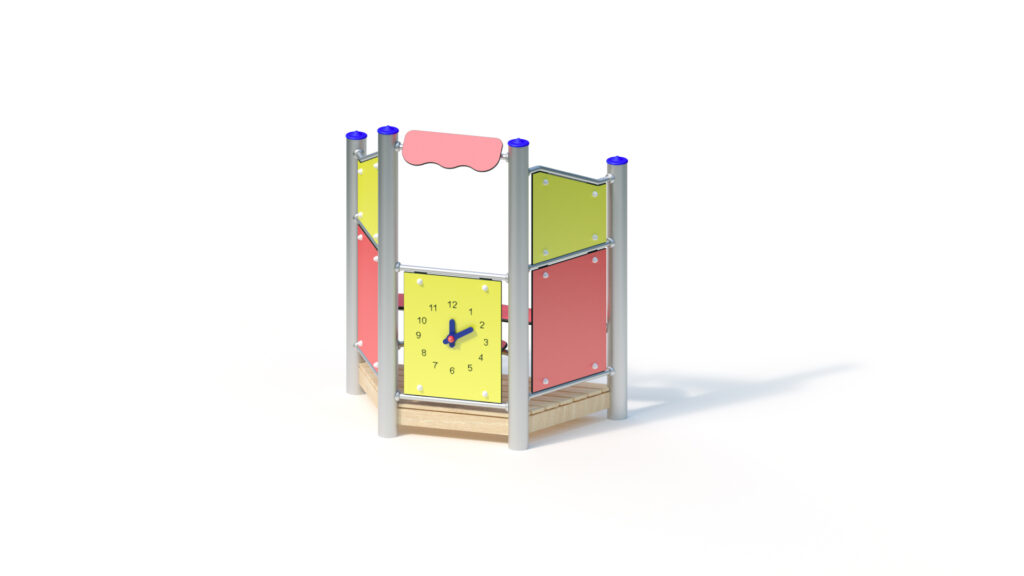

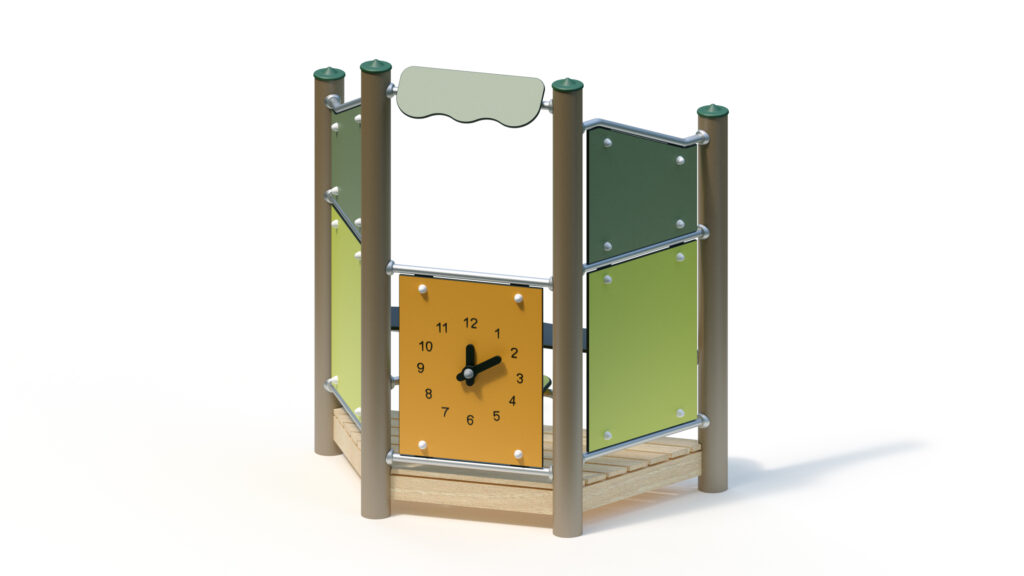

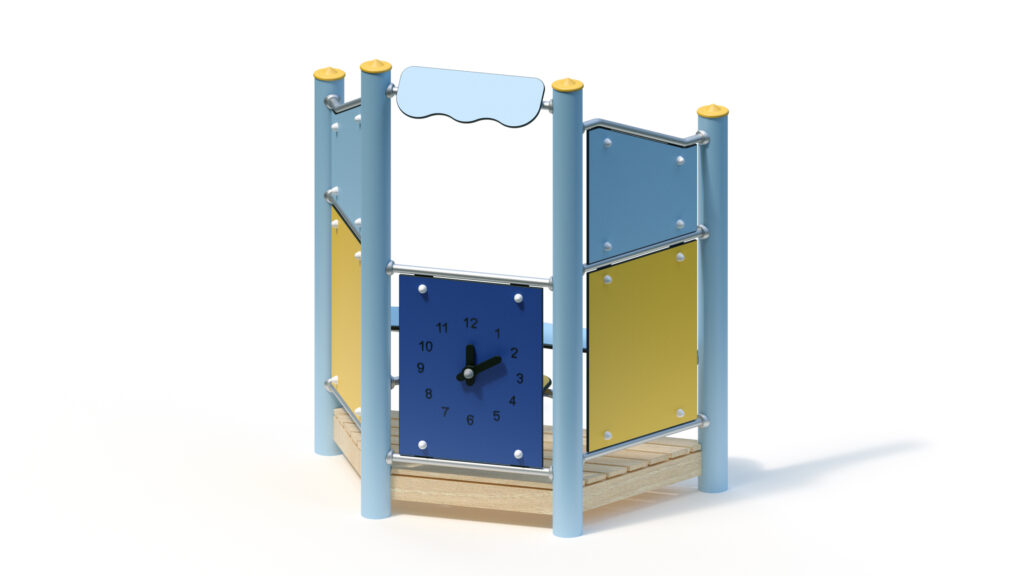

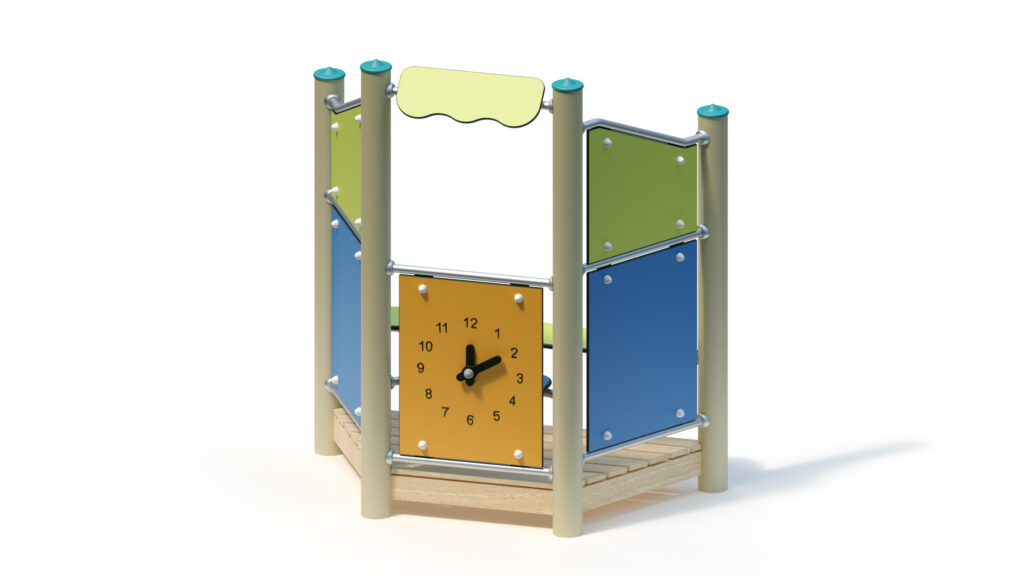

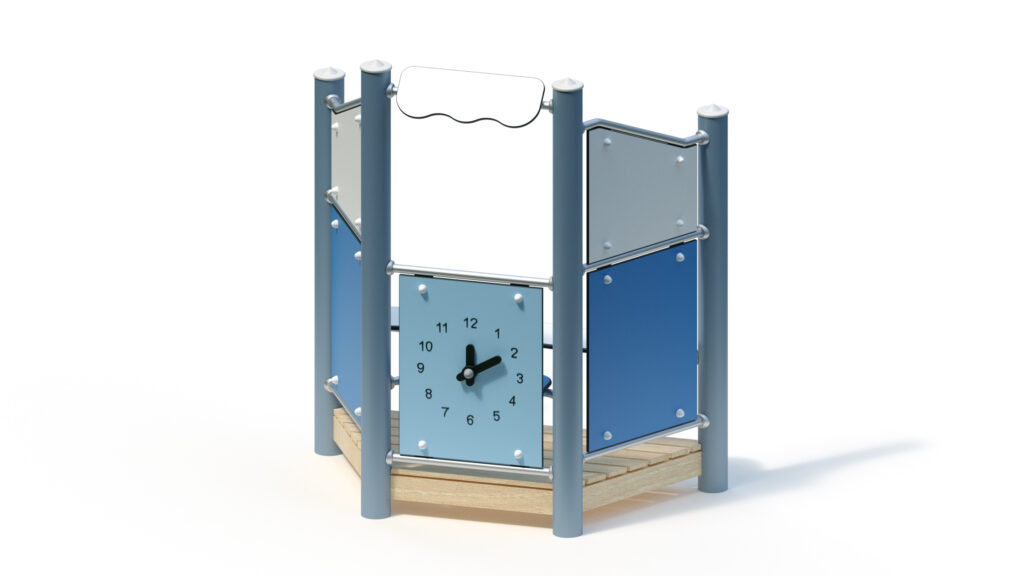

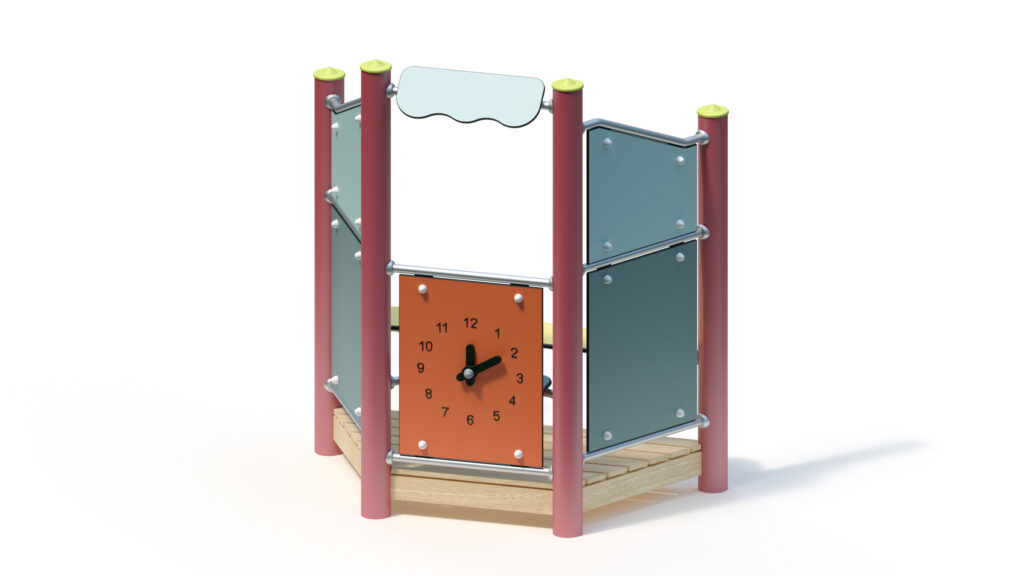

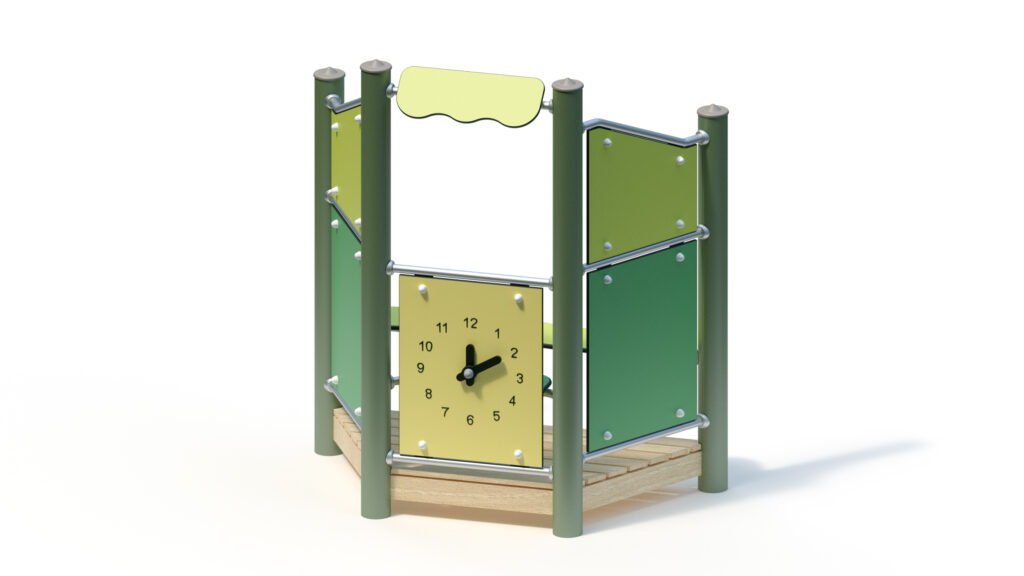

Glove puppet theatre 0-62150-500

Classic

Sun

Aloha

Beach

City

Coral

Ice Palace

Jungle

Mermaid

Nature

Ocean

Pirate

Safari

Sky

Sunny Day

Sweden

Technical specifications

Lifting device ? Appropriate hoisting equipment is necessary for assembling the playground equipment.

Total length ? The measurement indicating the length of the playground equipment.

1,75 m

Total width ? The measurement indicating the width of the playground equipment.

1,00 m

Total height ? The measurement indicating the height of the playground equipment.

1,95 m

Minimum space length ? The minimum required length for the space where the playground equipment will be placed.

4,75 m

Minimum space width ? The minimum required width for the space where the playground equipment will be placed.

4,00 m

Minimum space height ? The minimum required height for the space where the playground equipment will be placed.

1,95 m

Number of installers ? The number of qualified individuals required for product assembly.

2 Pers.

Assembly time ? The time required by qualified individuals to assemble the product.

2 h

Heaviest single piece ? The weight of the heaviest component of the product. This information is crucial for transportation and assembly.

45,00 kg

(Total) Weight ? The total weight of the product. This information is essential for transportation and assembly.

215,00 kg

Free height of fall ? The maximum free fall height of the product, from which the required impact-absorbing surfaces, impact area size, and fall protection requirements can be derived according to (DIN) EN 1176-1:2017.

0,60 m

Platform heights

0,20 m

Foundations

4 pcs.

0,40 x 0,40 x 0,40 m
Volume: 0,06 m3

Age group ? The specific age group for which the product was developed.

1+
Number of users ? The number of individuals who can use the product simultaneously.

7
Area of use ? The different environments or situations in which the product can be used.

public playgrounds
Activities ? The various tasks or actions that can be performed with the product.

social activity, manual activity
Product groups ? The categories of similar products.

Creative Equipment

Variants finder

Selected variant:

Please indicate the following variant number when placing your order:

Make contact

This kaiser & kühne product enables:

Product downloads:

Technical data
Total height: 1,95 m
Area: 1,00 x 1,75 m
Minimum space: 4,00 x 4,75 m (16 m²)
Platform height: 020 m
Weight: 45 kg heaviest single component
215 kg as a whole

Posts
Posts made from stainless steel tubes Ø 120×3 mm covered by non-detachable protective stainless steel caps.

Platforms
Platforms from boards of 30 mm thickness and all-round square-shaped joists 45 x 100 mm. Dried timber from Robinia, planed, milled and free from decay. Force-fitting fastening through specific stainless steel brackets with end-to-end bolt assembly.

Attachment parts
– infill panel made from highly weather-resistant coloured HPL, framed by stainless steel tubes Ø 33,7×2 mm, with clock hands made from coloured HPL panels for manual time adjustment
– infill panel made from highly weather-resistant coloured HPL, framed by stainless steel tubes Ø 33,7×2 mm
– infill panel made from highly weather-resistant coloured HPL, framed by stainless steel tubes Ø 33,7×2 mm
– seat made from yellow highly weather-resistant HPL panel (20 mm thickness)
– counter/awning from highly weather-resistant coloured HPL ,15 mm thickness

Metal components: stainless steel
Robinia timber is furnished with water-repellent, breathable protective coating. Besides protection from moisture, that treatment reduces crack formation. Thanks to a specific fastening adaptor, forces arising from the modular attachment parts are directly derived into the posts. Tamper-proof connections thanks to protective screw caps.

Foundations (on site)
4 pcs. 0,40 x 0,40 x 0,40 m
concrete amount: 0,26 m³

Approximate assembly values
2 mechanics 2 hours each
(without creating foundations)

Appropriate for
users of all ages,
public playgrounds etc.,
