Dalben Towers

Technical data
Area: 2,90 x 9,75 m
Minimum space: 5,90 x 13,25 m (55 m²)
Height: 7,50 m + top element
Platform heights: 1,00 / 2,00 / 3,00 m
Weight: 330 kg heaviest individual component
2120 kg as a whole

Posts
Laminated Larch Ø 200 mm with triple protective paint finish, supported by steel footings.

Platforms
Triangular timber platforms, laminated larch joists, platform covering from Robinia 95 x 30 mm, screw-fitted flange fixing to posts.
Stainless steel ladder access from platform to platform (safety barrier included), height of the first rung: 0,50 m.

The wood used in this product is high-quality laminated larch timber. In addition to our general terms and conditions, we offer a 12-year warranty, provided that the care and maintenance measures described in the maintenance instructions are followed.

Protective barriers (upwards from platform height 1,00 m)
Welded structure made of stainless steel tubes Ø 21/33,7 mm, glass bead blasted, screw-fitted flange fixing to posts

Tower hood
High pressure laminate 15 mm

Top element
Stainless steel hood

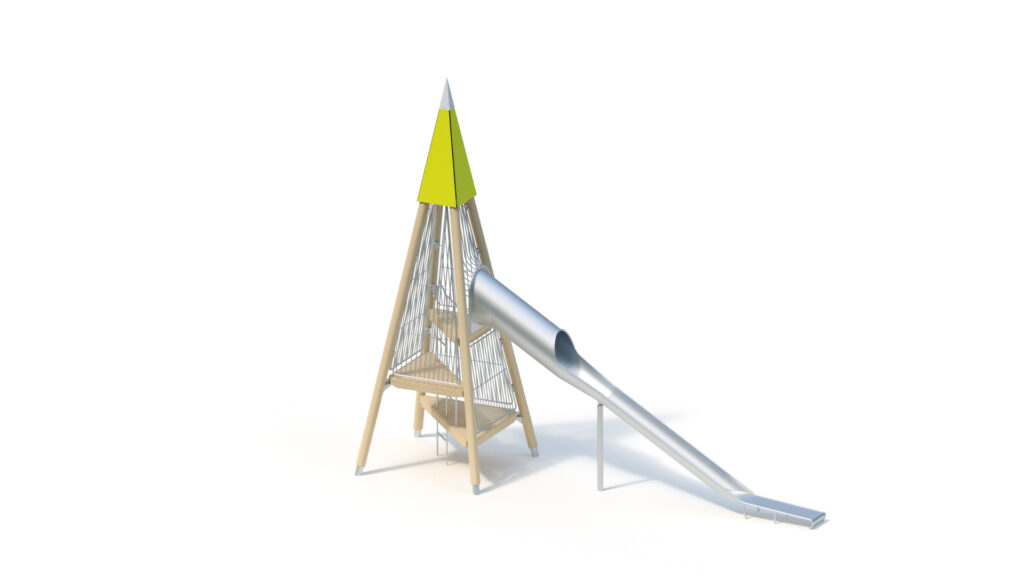

Tunnel hill slide 30°, installation height 3,00 m
Slide installation height: 3,00 m
Height of slide entrance: 3,10 m
Slide inclination: 30°
Slide width: 0,80/0,60 m
Sheet steel thickness: 2,5 mm
Course: straight

One-piece welding construction, particularly low-noise thanks to trough-shaped sliding segments.
Including support post from stainless steel tube Ø 120 x 3 mm, stainless steel fastening flange.

For your planning, due to a possible sliding surface heating, please see to a north-east orientation of the slides or provide half-shade of trees.

Anchorage
Dowelling of each base plate by means of 2 stainless steel injection anchors, material specification A4.
As damage protection, the tower is equipped with a lightning conductor.

Foundations (on site)
4 pcs. 1,00 x 1,00 x 0,50 m
1 pc. 0,40 x 0,40 x 0,60 m
1 pc. 1,00 x 0,40 x 0,50 m
1 pc. 1,40 x 0,75 x 0,40 m

Approximate assembly values
2 mechanics 14 hours each plus lifting gear
(without creating foundations)

Free height of fall
2,30 m

Appropriate for
children from the age of 8 years up,
public playgrounds etc.,
physical activity
