Dalben Towers

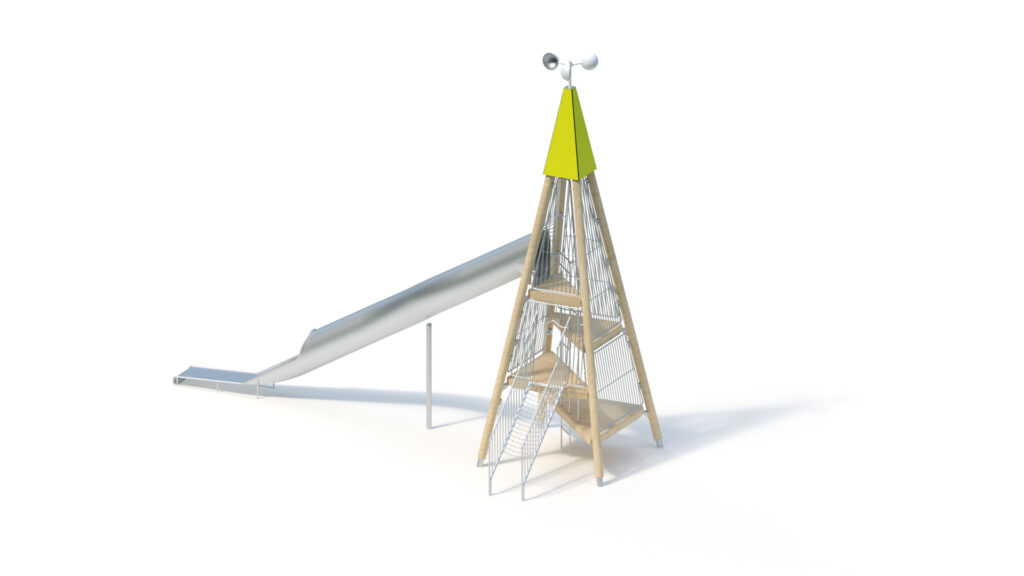

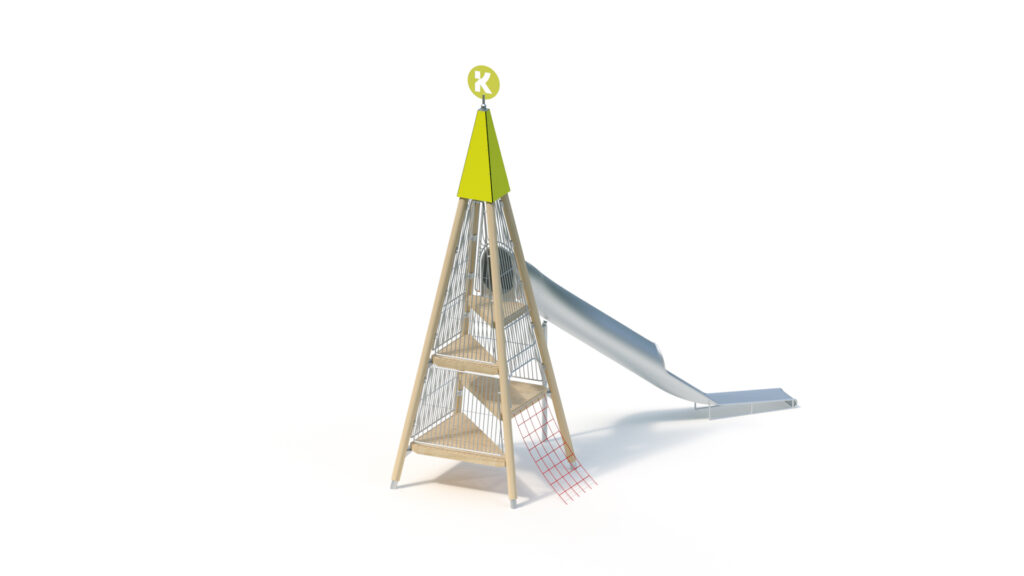

Dalben tower combination consisting of:
Dalben tower (8,50) with tunnel slide 30°/36° (4,00 m) and scramble up net access for platform height (2,00 m);
coloured tower hood / with whirligig

Technical data
Area: 5,65 x 9,55 m
Minimum space: 9,25 x 13,25 m (64 m²)
Height: 8,50 m + top element
Platform heights: 1,00 / 2,00 / 3,00 / 4,00 m
Slide installation height: 4,00 m
Height of slide entrance: 4,10 m
Slide inclination: 30°/36°
Slide width: 0,80 m
Sheet steel thickness: 2,5 mm
Weight: 450 kg heaviest individual component
2300 kg as a whole

Posts
Laminated Larch Ø 200 mm with triple protective paint finish, supported by steel footings

Platforms
Triangular timber platforms, laminated larch joists, platform covering from Robinia 95 x 30 mm, screw-fitted flange fixing to posts
Glass-bead blasted stainless steel ladder access from platform to platform (safety barrier included), height of the first rung: 0,50 m

The wood used in this product is high-quality laminated larch timber. In addition to our general terms and conditions, we offer a 12-year warranty, provided that the care and maintenance measures described in the maintenance instructions are followed.

Protective barriers (upwards from platform height 1,00 m)
Welded structure made of stainless steel tubes Ø 21/33,7 mm, glass bead blasted, screw-fitted flange fixing to posts

Tower hood
Coloured High pressure laminate 15 mm

Top element
Coloured whirligig

Climb up to platform height 2,00 m
– climbing net access from coloured Hercules ropes, Ø 16 mm, mesh size 300 m x 300 mm (axial dimension)

Tunnel slide 30°/36°, installation height 4,00 m
One-piece welding construction, particularly low-noise thanks to trough-shaped sliding segments consisting of the following parts:

– 16100 Tunnel slide entrance section (30°)
– 16130 Waved section 30°/36° for tunnel slide
– 16166 Curved section for 36° tunnel slide, 8 pcs.,
40° to the right
– 16116085 Straight section for 36° tunnel slide,
length 0,85 m
– 16186 Tunnel slide run-out section 36°

including hill slide support post for the curved section, made from stainless steel tube Ø 120 x 3 mm, stainless steel fastening flange

For your planning, due to a possible sliding surface heating, please see to a north-east orientation of the slides or provide half-shade of trees.

Anchorage
Dowelling of each base plate by means of 2 stainless steel injection anchors, material specification A4.
As damage protection, the tower is equipped with a lightning conductor.

Approximate assembly values
2 mechanics 18 hours each plus lifting gear
(without creating foundations)

Foundations (on site)
4 pcs. 1,00 x 1,00 x 0,50 m
3 pcs. 1,00 x 0,40 x 0,40 m
1 pc. 0,40 x 0,40 x 0,60 m
concrete amount: 2,58 m³

Free height of fall
2,00 m

Appropriate for
children from the age of 8 years up,
public playgrounds etc.,
physical activity
